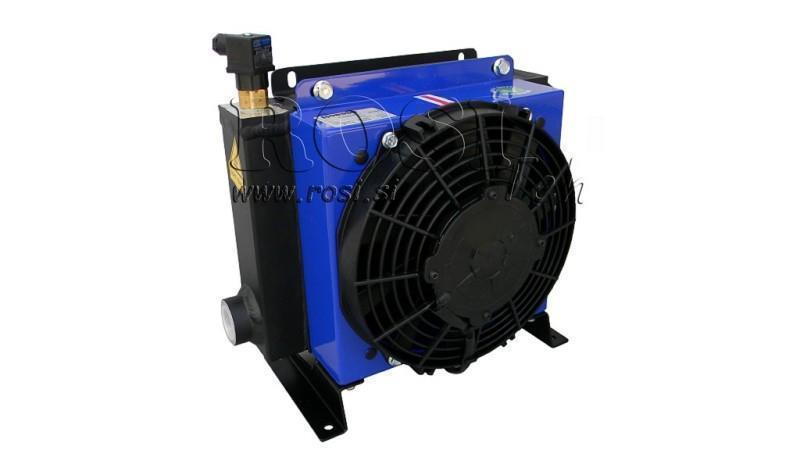

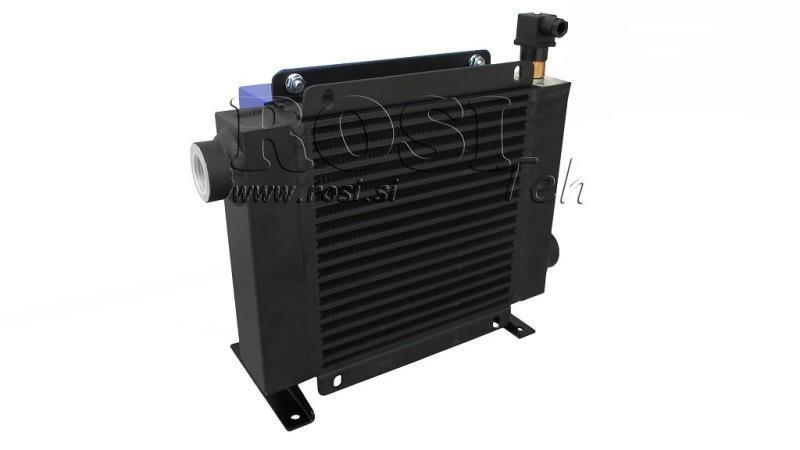

OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT
OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT

OIL HEAT EXCHANGER DC 12V HY03802 40-160 LIT

Article code:
10571
OEM:
9990000004942
Tax rate
22 %
Price without VAT:
459,02 €
Price with VAT:
560,00 €
Ref:
6
ADD TO CART

Standard compact oil heat exchangers »cross-flow«

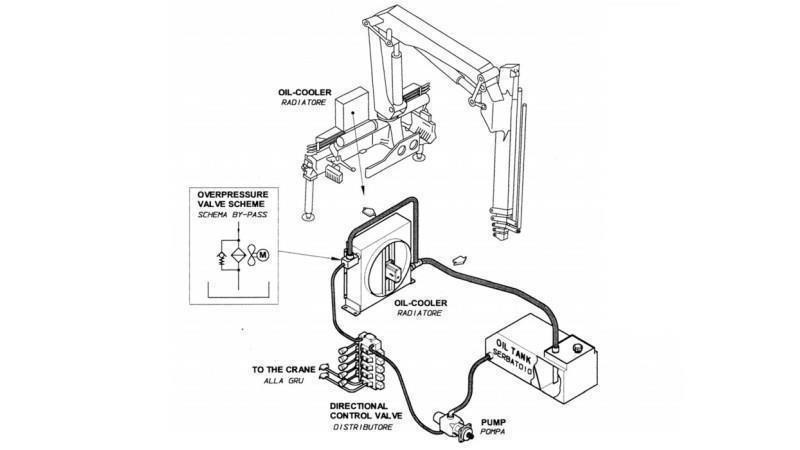

are used to cool hydraulic systems. They are intended for installation on industrial machines, tractor attachments, mobile machines, car lifts, in the freight program, etc. Possibility of use with DC or AC electric motors.

Radiator cores

made out of aluminum alloy, are made using vacuum hard-welded technology. Achieving high resistance of the selected material and reliability ensures the best sealing to the pressures of various hydraulic systems.

air flow:
1830 m3/h
power:
211 W
capacity:
4,6 liter
voltage:
12V
current load:
17,6A
thermostat on:
60°C
product weight:
17,5 kg
max. static pressure:
36 bar
return or exchange:
14 days
start:
soft start
outer protection:
IP 65-68
for oil flow:
40-160 l/min
for fluids:
oil - water / glycol - Diesel
max. operating temperaure:
120°C
warranty:
6 months
loudness:
72 db(A)
