25/10-XXX |
Stroke |
A |
AC |
AF |
|
[mm] |
||||
|
25/10-010 |
10 |
147 |
75 |
114 |
|
25/10-015 |
15 |
152 |
80 |
119 |
|
25/10-020 |
20 |
157 |
85 |
124 |
|
25/10-025 |
25 |
162 |
90 |
129 |
|
25/10-030 |
30 |
167 |
95 |
134 |
|
25/10-040 |
40 |
177 |
105 |
144 |
|
25/10-050 |
50 |
187 |
115 |
154 |
|
25/10-060 |
60 |
197 |
125 |
164 |
|
25/10-070 |
70 |
207 |
135 |
174 |
|
25/10-075 |
75 |
212 |
140 |
179 |
|
25/10-080 |
80 |
217 |
145 |
184 |
|
25/10-100 |
100 |
237 |
165 |
204 |
|
25/10-125 |
125 |
262 |
190 |
229 |
|
25/10-130 |
130 |
267 |
195 |
234 |
|
25/10-140 |
140 |
277 |
205 |
244 |
|
25/10-150 |
150 |
287 |
215 |
254 |
|
25/10-160 |
160 |
297 |
225 |
264 |
|
25/10-170 |
170 |
307 |
235 |
274 |
|
25/10-175 |
175 |
312 |
240 |
279 |
|
25/10-180 |
180 |
317 |
245 |
284 |
|
25/10-190 |
190 |
327 |
255 |
294 |
|
25/10-200 |
200 |
337 |
265 |
304 |
|
25/10-220 |
220 |
357 |
285 |
324 |
|
25/10-250 |
250 |
387 |
315 |
354 |
|
25/10-270 |
270 |
407 |
335 |
374 |
|
25/10-300 |
300 |
437 |
365 |
404 |
|
25/10-310 |
310 |
447 |
375 |
414 |
|
25/10-320 |
320 |
457 |
385 |
424 |
|
25/10-340 |
340 |
477 |
405 |
444 |
|
25/10-350 |
350 |
487 |
415 |
454 |
|
25/10-400 |
400 |
537 |
465 |
504 |
|
25/10-420 |
420 |
557 |
485 |
524 |
|
25/10-450 |
450 |
587 |
515 |
554 |
|
25/10-470 |
470 |
607 |
535 |
574 |
|
25/10-480 |
480 |
617 |
545 |
584 |
|
25/10-500 |
500 |
637 |
565 |
604 |

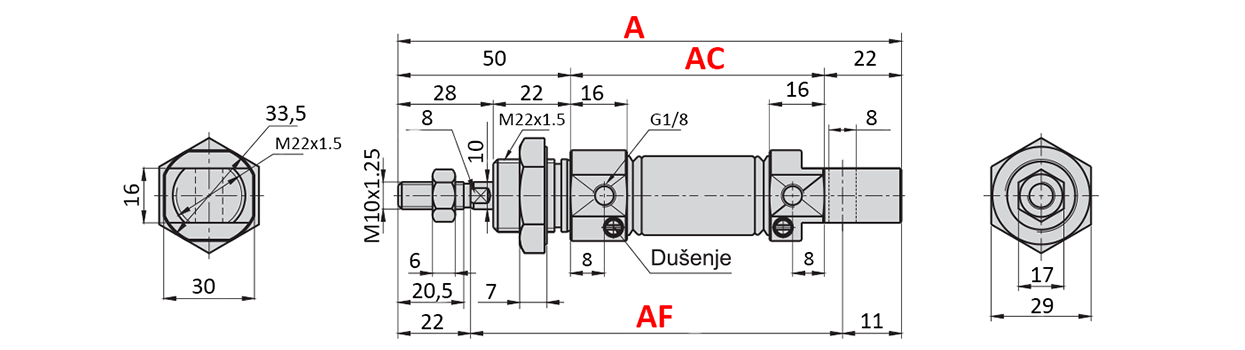

PCAI BE 25/10-xxx
